13  Dipole induction over a layered halfspace in the time domain

13.1 Inverse Fourier transform from frequency to time domain

We have already learned that the inverse transform (Fourier synthesis) back to the time domain can be performed using the Laplace transform when the source current in the transmitter dipole is turned on or off. The current waveform can be described mathematically by a Heaviside step function.

Key idea ist the step response.

The step response is the impulse response convolved with the transfer function of the step function. In the frequency domain we realize this by a multiplication of the Fourier transform of the considered field component with the Fourier transform of the step function.

The equation \[ \begin{equation} f(t)=\frac{1}{2 \pi} \int_{-\infty}^{\infty} \frac{F(\omega)}{i \omega} e^{i \omega t} \dd \omega \end{equation} \] describes the relation formally correct, but suffers from a singularity when \(\omega=0\).

Therefore the Fourier transformation is not applicable, since the function \(1/i\omega\) to be transformed is not integrable. However, this deficiency can be solved with a trick.

We will formulate the approach to the inverse Fourier transform a little more elegantly below.

13.1.1 Properties of the step response

First, we put together some pleasant properties of the function \(f(t)\) we are looking for:

  • \(f(t)\) is real, hence
  • \(F(\omega)\) is complex with symmetry \(F(-\omega) = \overline F(\omega)\)
  • \(f(t) = 0\) for \(t < 0\) (causality).

Therefore, as we will see, the inverse transformation can be carried out optionally as a cosine or sine transform of the imaginary or real part of \(\frac{F(\omega)}{\omega}\), respectively:

Step response via cosine or sine transform

\[ \begin{equation} \begin{aligned} f(t) &=\frac{2}{\pi} \int_{0}^{\infty} \operatorname{Im} \frac{F(\omega)}{\omega} \cos (\omega t) \dd \omega \\ &=\frac{2}{\pi} \int_{0}^{\infty} \operatorname{Re} \frac{F(\omega)}{\omega} \sin (\omega t) \dd \omega \end{aligned} \end{equation} \]

We note the change of the integration limits (from \(0\) to \(+\infty\)) and the leading factor \(2 / \pi\) instead of \(1 / 2 \pi\) before.

How do we get to this result?

  • To transform the field components into the time domain, we need to specify the frequency dependence of the dipole moment.
  • For a dipole moment of a VMD let \(\mathbf m(t) = \mathbf m_0 g(t)\) , \(g(t)\) is a dimensionless function.
  • The frequency dependent dipole moment is thus \(\widetilde{\mathbf m}(\omega) = \mathbf m_0 \widetilde{g}(\omega)\).

The Heaviside function is denoted by \(H(t)\).

First, we consider the current step-on. It holds \(g(t) =: g_\mathrm{on}(t) = H(t)\).

Using the Fourier transform pair

\[ \begin{equation} f(t)=\frac{1}{2 \pi} \int_{-\infty}^{+\infty} F(\omega) \mathrm{e}^{i \omega t} \dd \omega \end{equation} \]

\[ \begin{equation} F(\omega)=\int_{-\infty}^{+\infty} f(t) \mathrm{e}^{-i \omega t} \dd t \end{equation} \] and a stabilizing term \(e^{-\epsilon t}\), \(\epsilon \to 0^+\), we obtain (Table of Fourier transforms) \[ \begin{equation} \tilde{g}(\omega)=: \tilde{g}_\mathrm{o n}(\omega)=\lim _{\epsilon \rightarrow 0^{+}} \int_{0}^{\infty} e^{-(\epsilon+i \omega) t} \dd t=\lim _{\epsilon \rightarrow 0^{+}} \frac{1}{\epsilon+i \omega}. \end{equation} \] For the current step-off there holds \(g(t) =: g_\mathrm{off}(t) = H(-t)\): \[ \begin{equation} \tilde{g}(\omega)=: \tilde{g}_\mathrm{off}(\omega)=\lim _{\epsilon \rightarrow 0^{+}} \int_{-\infty}^{0} e^{(\epsilon-i \omega) t} \dd t=\lim _{\epsilon \rightarrow 0^{+}} \frac{1}{\epsilon-i \omega}. \end{equation} \] We add both expressions in the frequency domain and obtain \[ \begin{equation} \tilde{g}_\mathrm{o n}(\omega)+\tilde{g}_\mathrm{o f f}(\omega)=\lim _{\epsilon \rightarrow 0^{+}} \frac{2 \epsilon}{\epsilon^{2}+\omega^{2}}=2 \pi \delta(\omega), \end{equation} \] Equivalently, in the time domain \[ \begin{equation} g_\mathrm{o n}(t)+g_\mathrm{o f f}(t) = H(t) + H(-t)=1 \end{equation} \]

We now consider a source term of the form \(\mathbf m(t) = \mathbf m_0 e^{i \omega t}\) (complex-valued single-frequency source). The resulting field is \(F(\mathbf r, \omega) e^{i \omega t}\).

The real-valued field components for the current step-on (\(f_\text{on}\)) and step-off (\(f_\text{off}\)) are \[ \begin{equation} f_\mathrm{o n}(\mathbf{r}, t)=\frac{1}{2 \pi} \int_{-\infty}^{+\infty} \tilde{g}_\mathrm{o n}(\omega) F(\mathbf{r}, \omega) \mathrm{e}^{i \omega t} \dd \omega \end{equation} \] and \[ \begin{equation} f_\mathrm{o f f}(\mathbf{r}, t)=\frac{1}{2 \pi} \int_{-\infty}^{+\infty} \tilde{g}_\mathrm{o f f}(\omega) F(\mathbf{r}, \omega) \mathrm{e}^{i \omega t} \dd \omega. \end{equation} \] Due to causality all field components must be zero for \(t<0\).

Setting \(t' := -t\) we obtain \[ \begin{equation} 0=\frac{1}{2 \pi} \int_{-\infty}^{+\infty} \tilde{g}_\mathrm{o n}(\omega) F(\mathbf{r}, \omega) \mathrm{e}^{-i \omega t'} \dd \omega. \end{equation} \] Multiplying out \(F = real(F) + i\cdot imag(F)\) and \(\mathrm{e}^{-i \omega t'} = \cos(\omega t') - i \sin(\omega t')\) and taking into account that \(f(t)\) is real, we obtain the following result for \(t>0\): \[ \begin{equation} \begin{aligned} f_\mathrm{o n}(\mathbf{r}, t) & = -\frac{2}{\pi} \int_{0}^{\infty} \operatorname{Im}\left[\tilde{g}_{o n}(\omega) F(\mathbf{r}, \omega)\right] \sin (\omega t) d \omega \\ & =\frac{2}{\pi} \int_{0}^{\infty} \operatorname{Re}\frac{F(\omega)}{\omega} \sin (\omega t) d \omega. \end{aligned} \end{equation} \] We have exploited that \[ \begin{equation} \lim _{\epsilon \rightarrow 0^{+}} g_{o n}(\omega) \sin (\omega t)=\frac{\sin (\omega t)}{i \omega} \end{equation} \] is finite for \(\omega \to 0\), such that the stabilizing term \(\epsilon\) is not required.

13.3 The Fast Hankel Transform (FHT)

We follow the basic ideas of the FHT as introduced above where we have considered dipole induction in the frequency domain over a (layered) half-space.

After a substitution of variables, a convolution integral and later a convolution sum with finitely many terms can be established.

Likewise, we make the transformations \[ \begin{equation} \begin{aligned} x & = \log(t / t_0) \\ y & = -\log (\omega t_0), & t_0 > 0 \\ G(x) & = t g(t) \\ F(y) & = f(\omega) \\ H(x) & = e^x J_\nu(e^x). \end{aligned} \end{equation} \]

13.3.1 How many frequency solutions are required?

Which frequencies have to be calculated and how do they depend on the desired time interval?

The following rule applies:

Let \(n_c\) be the number of filter coefficients, \(n_t\) the number of logarithmically equidistant time points \(t_i\), \(i=1,\dots,n_t\).

This gives \(n_c + n_t - 1\) necessary evaluations in the frequency domain.

The location of the required frequencies can be calculated from \(t_i\) if the location of the zero index of the filter coefficients is known.

Let \(n_0\) be the zero index, \(n_c\) the filter length and \(n_t\) the length of the desired time signal, then the following determination equation is valid for the required angular frequencies \[ \begin{equation} \omega_n = \frac{1}{t_0} 10^{(1 - n_0 + n_c - n) / 10}, \qquad n=1,\dots,n_c + n_t - 1 \end{equation} \]

Example

Let \(n_c = 80\), \(n_t = 31\) sampled from the interval \(t_0 = 10^{-6} \le t \le 10^{-3}\) s with 10 log-equidistant samples per decade.

Then \(n_c + n_t - 1 = 110\).

Let’s compute the \(\omega_n\).

Show the code
nt = 31
t = np.logspace(-6, -3, nt, endpoint=True)
t0 = t[0]
nc = 80
nc0 = 40
ncnt = nc + nt - 1
omega = np.zeros(ncnt, dtype=np.float64)
omega = np.array([10**(0.1 * (nc - nc0 - i)) / t0 for i in range(0, ncnt)])

The required 110 frequencies \(f_n = \omega_n / (2 \pi)\) are located between np.float64(0.02) Hz and np.float64(1.592) GHz.

13.4 Numerical experiments

Show the code
def gethankelfcsin():
    fc = np.array([
        +2.595262360000e-07, +3.665448430000e-07, +5.178307950000e-07, +7.313406220000e-07,
        +1.033228050000e-06, +1.459185000000e-06, +2.061610650000e-06, +2.911377930000e-06,
        +4.113578630000e-06, +5.808764200000e-06, +8.207980750000e-06, +1.158950830000e-05,
        +1.637785600000e-05, +2.312284590000e-05, +3.268006490000e-05, +4.613293340000e-05,
        +6.521010850000e-05, +9.203905750000e-05, +1.301229350000e-04, +1.836204310000e-04,
        +2.596566260000e-04, +3.663119820000e-04, +5.181411840000e-04, +7.307173400000e-04,
        +1.033921840000e-03, +1.457427140000e-03, +2.062923020000e-03, +2.905999110000e-03,
        +4.114719020000e-03, +5.790427630000e-03, +8.200047220000e-03, +1.151929300000e-02,
        +1.630391330000e-02, +2.282577570000e-02, +3.222492220000e-02, +4.478643280000e-02,
        +6.273296250000e-02, +8.570591000000e-02, +1.174183140000e-01, +1.536326550000e-01,
        +1.977179640000e-01, +2.288498490000e-01, +2.403110380000e-01, +1.654092200000e-01,
        +2.847014760000e-03, -2.880160570000e-01, -3.690974060000e-01, -2.501075140000e-02,
        +5.718112560000e-01, -3.922615720000e-01, +7.632800440000e-02, +5.162339940000e-02,
        -6.480120820000e-02, +4.890471410000e-02, -3.269363310000e-02, +2.105398420000e-02,
        -1.338625490000e-02, +8.471246950000e-03, -5.351239720000e-03, +3.377966510000e-03,
        -2.131744660000e-03, +1.345138330000e-03, -8.487496120000e-04, +5.355310060000e-04,
        -3.378987800000e-04, +2.132001090000e-04, -1.345202730000e-04, +8.487657870000e-05,
        -5.355350690000e-05, +3.378998010000e-05, -2.132003650000e-05, +1.345203370000e-05,
        -8.487659490000e-06, +5.355351100000e-06, -3.378998110000e-06, +2.132003680000e-06,
        -1.345203380000e-06, +8.487659510000e-07, -5.355351100000e-07, +3.378998110000e-07
    ])
    nc = 80
    nc0 = 40
    return fc, nc, nc0

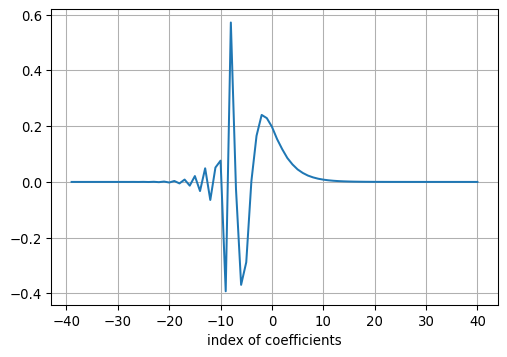

We plot of the filter coefficients for \(J_{+1/2}(\omega t)\), i.e., the sine transform:

Show the code
fc, nc, nc0 = gethankelfcsin()
fig, ax = plt.subplots(1, 1, figsize=(6,4))
ax.plot([nc0 - i for i in range(0, nc)], fc)
ax.set_xlabel('index of coefficients')
ax.grid(True)

In the following we will implement a function for the computation of the step response of a layered halfspace.

To this end, we provide two analytical solutions for the dipole induction in a uniform halfspace in the frequency domain. More precisely,

  • Bz_analytical() provides all required frequency domain solutions to be used in the sine transform,
  • dBzdt_halfspace() provides an analytical reference solution for the impulse response of a uniform halfspace.
Show the code
def Bz_analytical(r, omega, sigma):
    μ = np.pi * 4e-7
    k = np.sqrt(-1j * omega * μ * sigma)
    B = 9 - (9 + 9 * 1j * k * r - 4 * k**2 * r**2 - 1j * k**3 * r**3) * np.exp(-1j * k * r)
    B = B * μ / (2 * np.pi * k**2 * r**5)
    return B

from scipy.special import erf

def dBzdt_halfspace(t, r, sigma, m=1.0):
    nt = len(t)
    hzp = np.zeros(nt)
    mu0 = np.pi * 4e-7
    for i in range(nt):
        theta = np.sqrt(mu0 * sigma / (4 * t[i]))
        hzp[i] = -m / (2 * np.pi * sigma * r**5) * (
            9 * erf(theta * r) -
            2 * theta * r / np.sqrt(np.pi) * (
                9 +
                6 * theta**2 * r**2 +
                4 * theta**4 * r**4
            ) *
            np.exp(-theta**2 * r**2)
        )
    return hzp

We check our implemention and set

  • \(\sigma=0.01\) S/m,
  • \(r=100\) m,
  • \(z=h=0\) m,
  • time interval as defined above.
Note

Note that the call of Bz_analytical in the code below may be replaced by a call to any appropriate function which provides the frequency domain field components of any dipole type and orientation.

Show the code
sigma = 0.01
r = 100.0
Bz_f = [Bz_analytical(r, w, sigma) for w in omega]

dBzdt = convolve(fc, \
    np.real(1j * omega * Bz_f / np.sqrt(omega))
    ) * np.sqrt(2 / np.pi / t)
dBzdt_ana = dBzdt_halfspace(t, r, sigma)

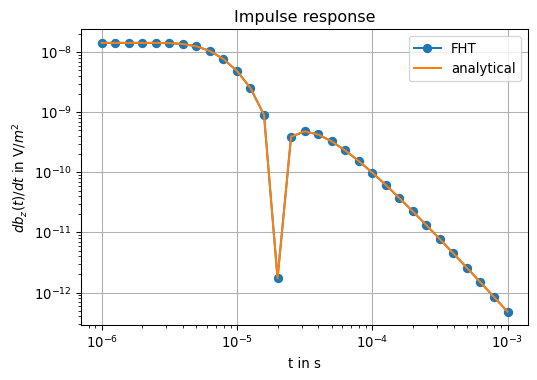

Plot of the results

Show the code
fig, ax = plt.subplots(1, 1, figsize=(6,4))

ax.loglog(t, np.abs(dBzdt), marker='o', label='FHT')
ax.loglog(t, np.abs(dBzdt_ana), label='analytical')
ax.legend()
ax.set_xlabel('t in s')
ax.set_ylabel(r'$db_z(t)/dt$ in V/$m^2$')
ax.set_title('Impulse response')
ax.grid(True)

By visual inspection, there is no substantial problem in our implementation.

The relative numerical error can be evaluated by an appropriate error norm, i.e., \[ \delta = \frac{\left \| \dv{}{t}b_z^{analytical}(t) - \dv{}{t}b_z^{FHT}(t) \right \|_2}{{\left \| \dv{}{t}b_z^{analytical}(t) \right \|_2}} \] which evaluates for our experiment to 9.61e-08.

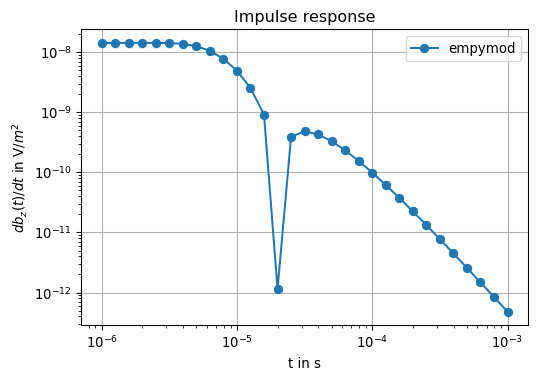

13.5 Example using empymod

With empymod we can model any type of dipole embedded in a layered halfspace and evaluate fields both in frequency and time domain.

We consider the example introduced above and provide the fields with empymod.

Show the code
import empymod
time = np.logspace(-6, -3, 31)
mu_0 = np.pi * 4e-7
src = [0, 0, 0, 0, 90]
rec = [100, 0, 0.1, 0, 90]
depth = 0
res = [2e14, 100]
eperm = [0, 0]
inp = {
        "src": src,
        "rec": rec,
        "depth": depth,
        "res": res,
        "freqtime": time,
        "verb": 1,
        "xdirect": True,
        "epermH": eperm,
}

dbz_num = empymod.loop(signal=0, **inp) * mu_0
fig, ax = plt.subplots(1, 1, figsize=(6,4))

ax.loglog(time, np.abs(dbz_num), marker='o', label='empymod')
ax.legend()
ax.set_xlabel('t in s')
ax.set_ylabel(r'$db_z(t)/dt$ in V/$m^2$')
ax.set_title('Impulse response')
ax.grid(True)
